KK-5 Flying Cold Saw

Current location: > - English > - Products > - Flying Saw > - KK-5 Flying Cold Saw >

Flying cold sawing is a new online cutting technology in H.F. welded tube industry. Compared with the friction heat saw, the biggest advantage is that the end of the tube is smooth and without burr after cutting off. For high quality requirements, these is no need off-line second treatment. In addition, due to the use of servo tracking technology, cutting length accuracy is higher than the traditional friction flying saw. Dust and noise pollution are obviously reduced in the production process.


KK series flying saws from Kaikong company, is single saw in-feed type cold saw. This series includes 9 models, suitable for cutting steel tube/pipe with diameter from 6mm to 168mm and wall thickness from 0.3mm to 8mm during production. The pipe/tube material can be HR steel strip, CR steel strip, GI steel strip, copper, aluminum and zinc magnesium alloys. Blade can be made from high speed steel or alloy saw blade, cut tube/pipe with 300Mpa to 980Mpa tensile strength. Kaikong company possess all core technologies of cold cutting flying saw, both mechanical and electrical.

Inquiry email: sales@kaikongcn.com


Cold saw type and specification
锯型号
Saw Type
切割范围
Diameter
mm
切割厚度
Thickness
mm
最高速度
Max Speed
M/min
总功率
Total
 Power

锯片直径Blade
mm
卡具形式
Clamp
20 ●Φ6-25
■6-20
▋MAX15*25
0.3~1.2 130 19KW 300 2Groups by Air
32 ●Φ8-38
■10-30
▋MAX20*40
0.3~2.0 120 20KW 350 2Groups by Air

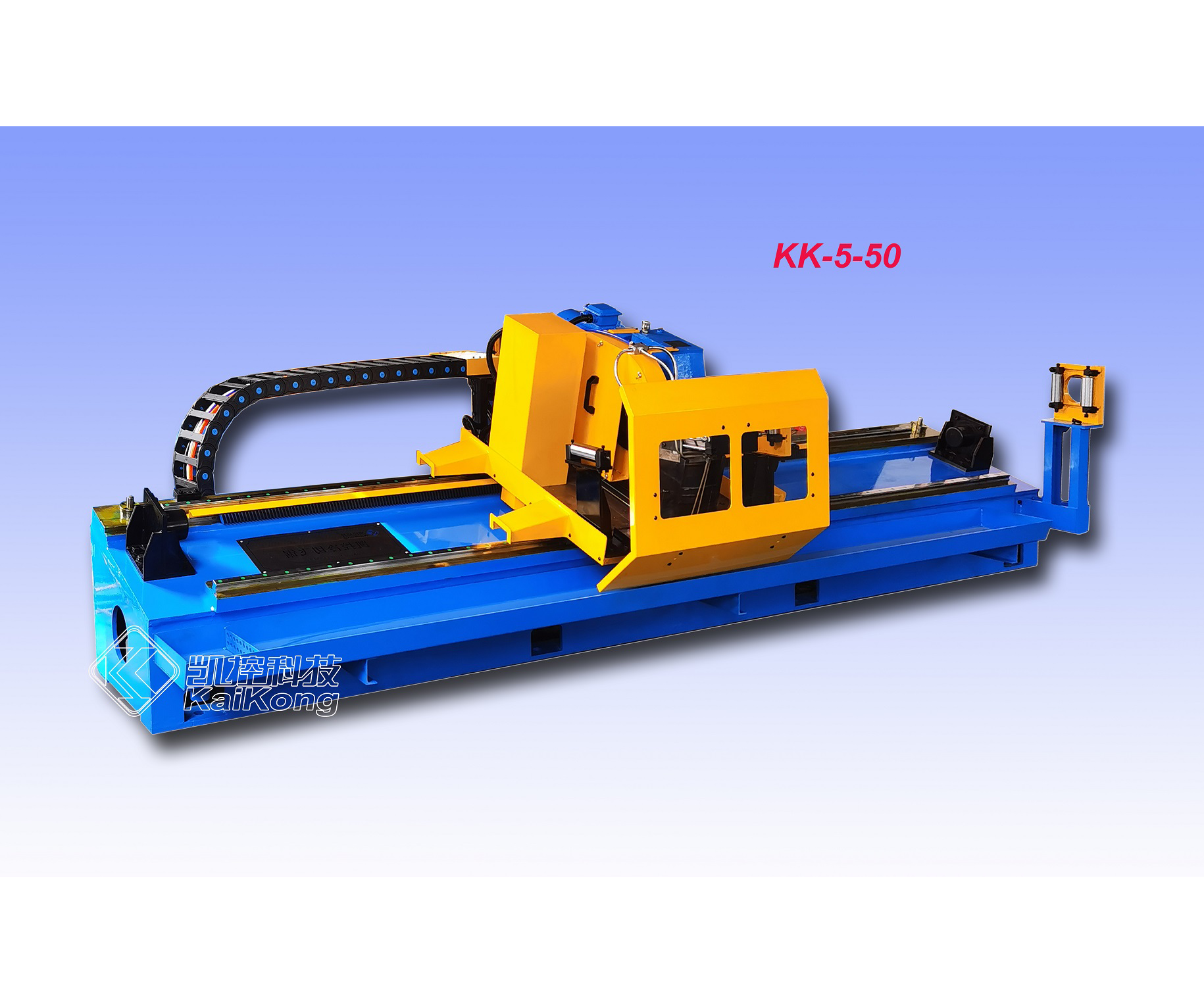

50 ●Φ20-63.5
■25-50
▋MAX40*60
0.6~2.5 110 23KW 400 2Groups by Air

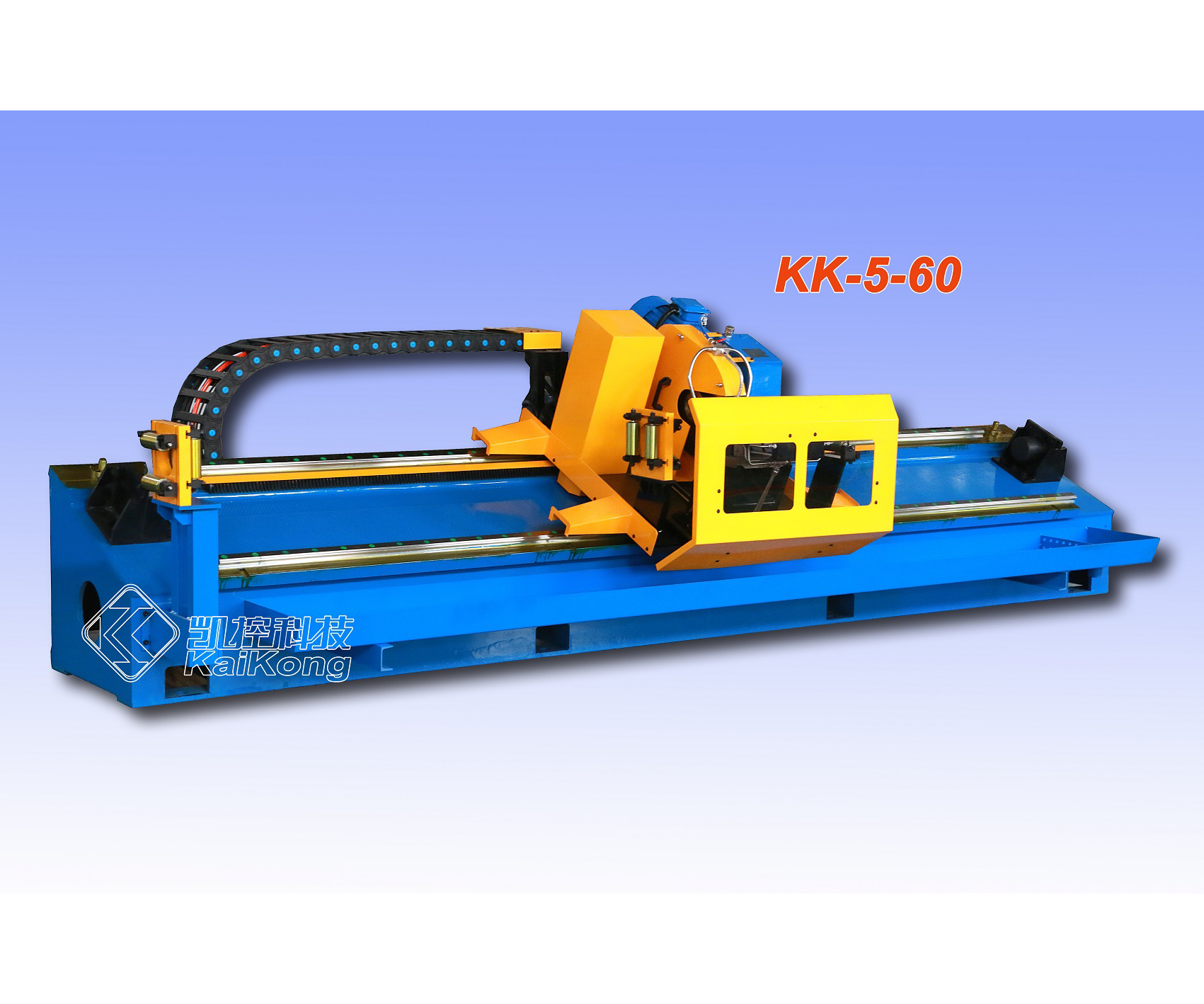

60 ●Φ25-76
■30-60
▋MAX40*60
0.8~2.5 90 23KW 450 2Groups by Air

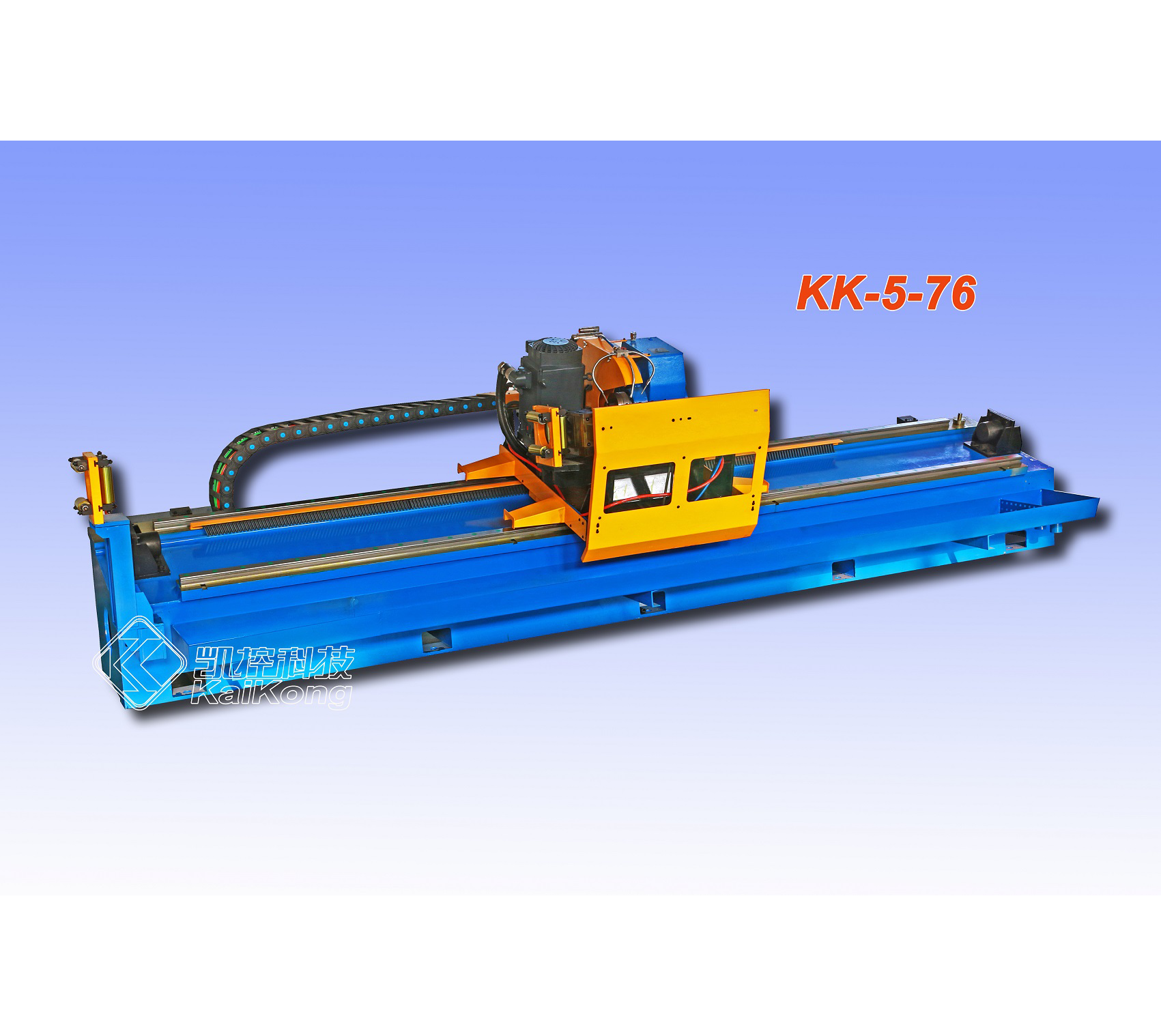

76 ●Φ25-89
■30-70
▋MAX40*70
0.8~3.5 90 33KW 450 3 Groups by Air
89 ●Φ38-105
■40-80
▋MAX60*80
0.8~4.0 80 41KW 500 3 Groups by Hydr.
114 ●Φ48-114
■40-90
▋MAX60*90
0.8~4.0 70 47KW 560 3 Groups by Hydr.
127 ●Φ50-140
■50-100
▋MAX60*120
1.2~5.0 60 61KW 560 3 Groups by Hydr.
165 ●Φ76-168
■60-140
▋MAX90*150
2.0~6.0 60 66KW 630 3 Groups by Hydr.
