KK-7 series profiling milling saw is a kind of two-blade flying saw which is normally used in cutting off tubes with big diameter and wall-thickness during tube production. The two blades are installed oppositely on one rotary disk, move in R-θ mode to cut off tubes. When the system works, the two blades move along radius direction straightly to the center of tube section until break the surface of tube(R), then, rotary disk take the two blades rotating around the center of tube section until cut off the tube(θ). The path of rotation is similar to the profile of tube section.

KK-7 series saw are controlled by advanced SIEMENS Simotion and ProfiNet system. Seven servo motors are used in carriage in total, including feeding system, rotary system and blade system.

锯型号 Saw Type	最高速度 Max Speed M/min	钢管规格 Pipe Spec mm	钢管壁厚 Thickness mm	切割范围 Cutting Range	控制系统 Control System	设备总功率 Total Power	设备总重 Total Weight	设备尺寸 Dimension

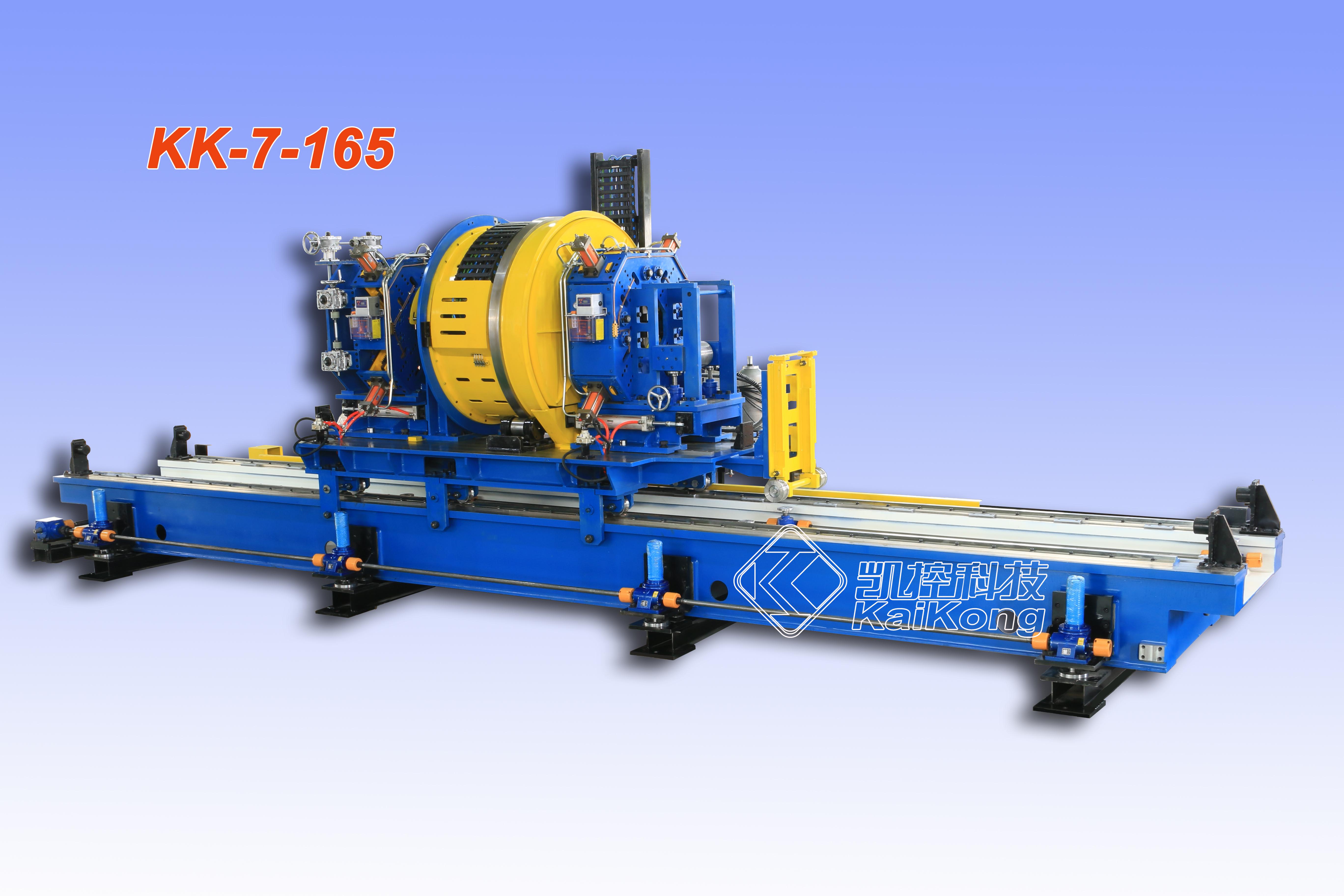

165	55	●Φ76-168 ■80-140 ▋MAX100*150	2.0-6.0	1~32m	西门子或安川 Simens/Yaskawa	86KW	10.5TON	830020002400mm

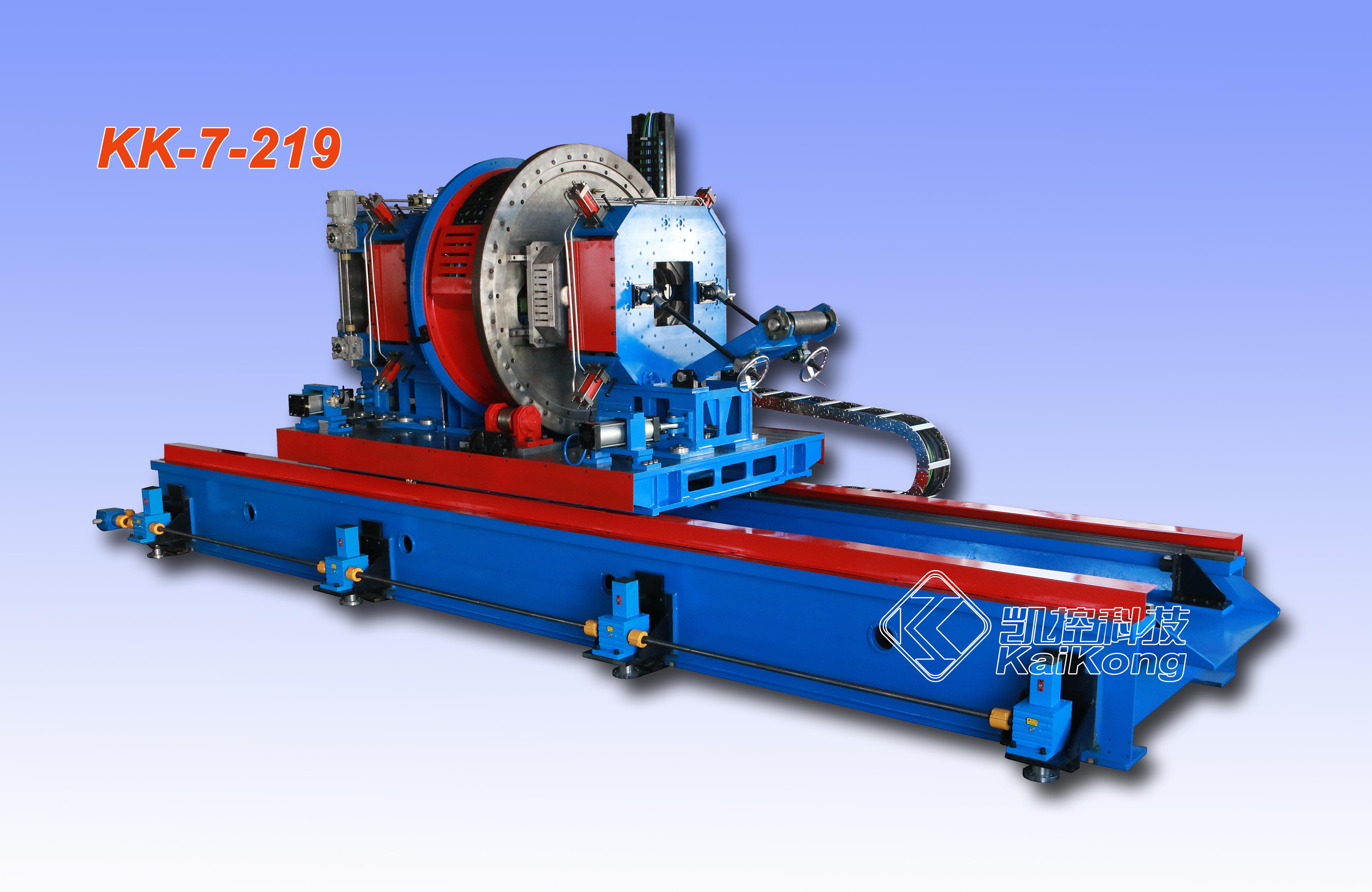

219	45	●Φ89-219 ■100-170 ▋MAX100*180	4.0~8.0	1~32m	西门子或安川 Simens/Yaskawa	110KW	18TON	950020502900mm

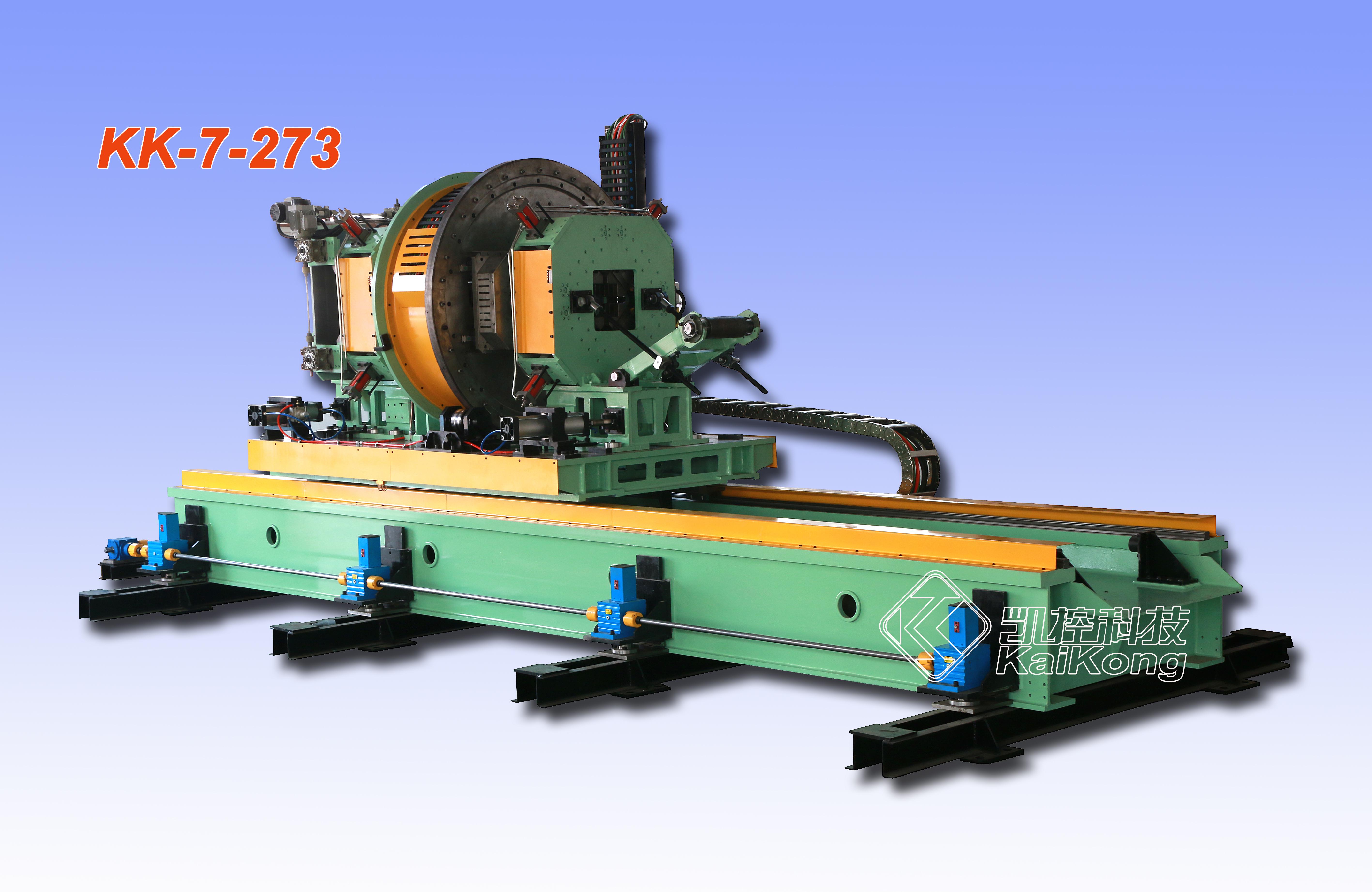

273	40	●Φ114-273 ■80-200 ▋MAX150*200	6.0~12.0	1~32m	西门子或安川 Simens/Yaskawa	140KW	24TON	950020502900mm

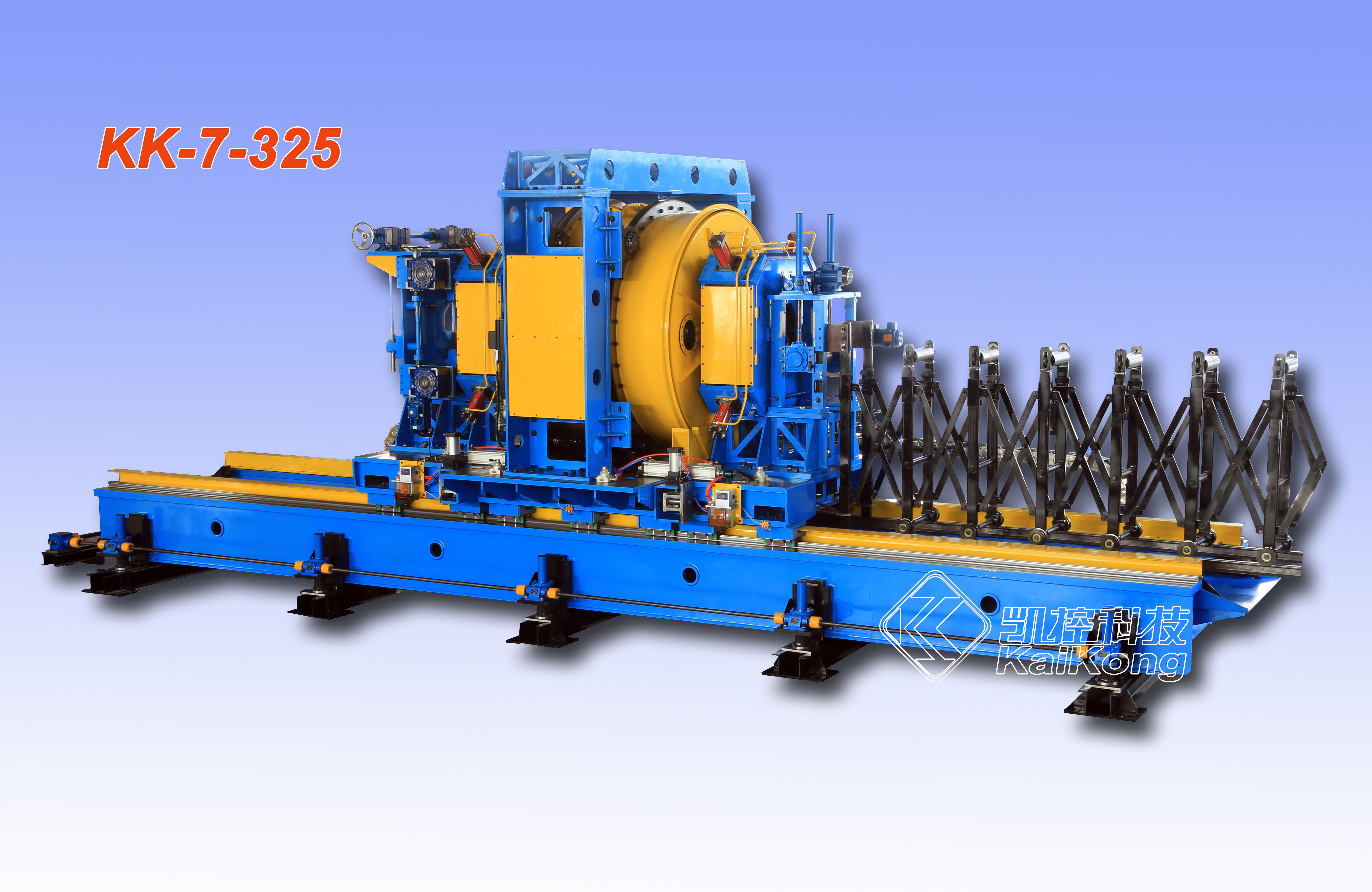

325	35	●Φ114-325 ■100-250 ▋MAX200*300	8.0-14.0	1~32m	西门子 Simens	148KW	36TON	1165036253100mm

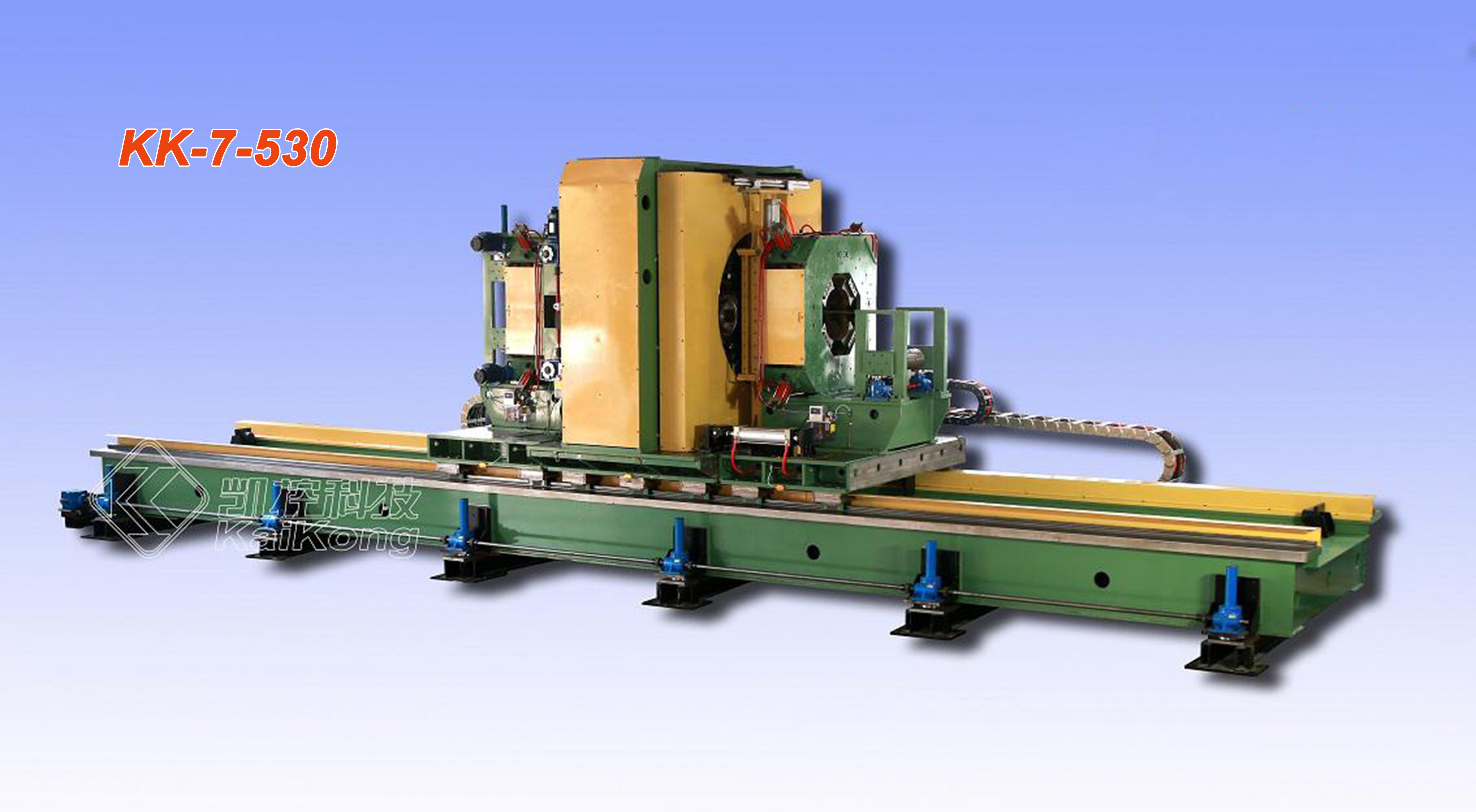

530	25	●Φ219-530 ■200-400 ▋MAX300*400	10.0~16.0	1~32m	西门子 Simens	156KW	55TON	1185042503300mm
